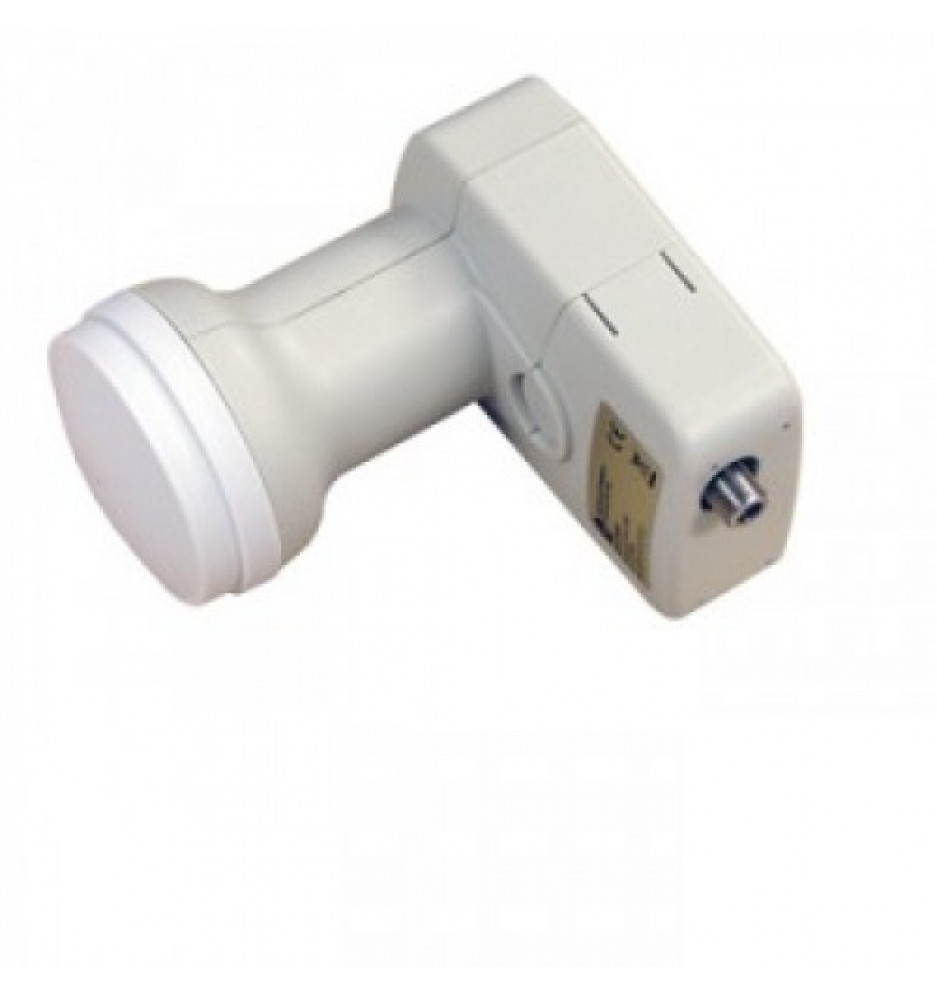

- MTI High Line - 0.2dB - 1x Output

Out of stock - Recommended 511INV instead.

Universal Ku Band LNBF 0.2dB High Line 100mA Recommended for weak satellite signals such as Arabsat, Nilesat, BSkyB channels (Astra 28 'east)

Input Frequency Range Low Band:
10.7 ~ 11.70
GHz High Band:
11.7 ~ 12.75 GHz IF
Input Output Frequency Range Low Band:
950 ~ 1950
MHz high band:
1100 ~ 2150MHz
Output Connection type 75O female output VSWR 2.0: 1 (type) @ Room temperature Local oscillator LO.

Frequency Low band:
9.75 GHz
High Band: 10.6GHz LO. Frequency Stability ± 1MHz (max) @ Room temperature LO. Frequency phase noise -55dBc / Hz @ 1kHz (max) -80dBc / Hz @ 10KHz (max) -100dBc / Hz @ 100kHz (max) Conversion Performance @ Room Temperature Conversion GAIN-70dB (max) 65dB (Min.) Gain Variation (PP) ) 4dB (Type.) Gain Scheduling (Over All 26 MHz Segments) ± 0.5dB (Type.) Noise Rate Low Band: 0.2dB (Type.) How Band: 0.3dB (Type.) Image Off 45dB (.min) Cross Polarization 25 dB (type.) Power Requirements DC Power Consumption: 70mA (Type.) Operating Voltage - Vertical: 11.5 ~ 14V DC

Horizontal: 16 ~ 19 V DC Band Switching Low Band: 0 Hz High Band: 22 KHz ± 4 kHz Environment Operating Temperature -40 ~ 60? Storage temperature -55? ~ 80?
